How to use the JUKI HZL-80H / HZL-60H sewing machine

How to use the JUKI HZL-80H / HZL-70H / HZL-60H sewing machine

Thanks to their similar design, the tips and tutorials intended for the Juki HZL-80H also apply easily to the HZL-60H or HZL-70H

Discover the world of advanced sewing with our detailed guide to using the JUKI HZL-80H sewing machine. Thanks to its advanced electronic features, 197 stitch patterns and automatic buttonholes, it is ideal for sewers of all levels who want to invest in a reliable and high-performance machine. Follow this step-by-step tutorial to master its settings and start your sewing projects with confidence.

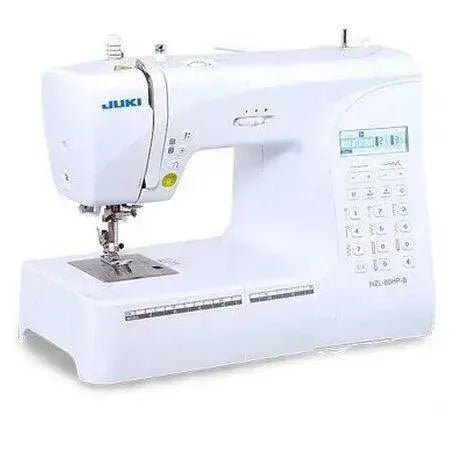

The HZL-80H is a compact electronic machine that is versatile and equipped with numerous automatic features such as automatic threading, the built-in thread cutter and presser foot pressure adjustment. Its value for money makes it an excellent choice, even as a first purchase. It is positioned as a serious alternative to entry-level machines offered by other major brands such as Brother, Janome and Singer.

For more experienced sewers who want to move up to a higher range, there is also the Juki HZL-DX7 sewing machine, an even more comprehensive model designed to meet the needs of professional sewing and demanding projects.

Winding a bobbin with the HZL-80H / HZL-70H / HZL-60H sewing machine:

To start sewing, you need to place the bobbin in your machine to secure your stitching, and to do this you first need to know how to wind a bobbin with the thread color of your choice.

We also offer an explanatory video for better guidance through the tutorial.

Step 1: First, make sure your sewing machine is properly plugged in, then place the original spool containing the thread you want to use on the spool pin.

Step 2: Now take the thread and pass it through the thread path (phases 2 and 3), then through the small hole in your bobbin (not the bobbin opening), as shown in the images below.

Step 3: Next, place the bobbin on its holder while holding the thread. Make sure you have moved the bobbin to the right.

Step 4: From there, press and hold your foot pedal while still holding the bobbin thread, and your thread will wind itself around your bobbin!

Once you have filled half of your bobbin, cut the thread you were holding, then continue while keeping your foot on the pedal. When you have finished, cut the thread connecting it to the spool.

Step 5: Now take the thread from your original spool and pass it through your machine's thread guide. Then use the automatic needle threader to pass the thread through the eye of your needle, and pass your thread through the slot in the presser foot to clear your sewing area.

Step 6: Next, remove the bobbin cover. Place your bobbin with the loose end of the thread, which you will pass through the thread path as shown in the image below, then replace the cover.

In phase C, make sure that the thread has been cut.

Step 7: Finally, pass fabric under the presser foot, then press the top button twice to lower and raise the needle and retrieve the bobbin thread. When removing the fabric, the thread will detach from the fabric by itself.

There you go, you can start sewing now!

As mentioned above, not only can the Juki machine HZL-80H sew several stitches, but it can also sew patterns and letters! We will therefore explain how to adjust your machine to create beautiful pattern or letter finishes.

Sewing patterns with the HZL-80H / HZL-70H / HZL-60H sewing machine:

You can easily choose your pattern; you will only need to make a few adjustments on the display screen.

Feel free to watch our video illustrating the steps.

First, your screen will display "Direct" in the bottom left. Press "A" once to display "Patterns I", which corresponds to the patterns.

You can enter the number of the pattern of your choice according to the pattern plate. You can also combine several patterns using the button "M" corresponding to the memory.

Note:
The patterns in direct mode and patterns 15-24 of "Patterns I" cannot be memorized.

Lower your presser foot and you can finally sew on your fabric while pressing the foot pedal. Once your pattern is complete, remember to perform an automatic lock stitch by pressing the 2nd button.

Raise your presser foot and remove your project using the thread cutter on the left side of your machine. Admire your precisely and easily sewn patterns.

Sewing letters with the HZL-80H / HZL-70H / HZL-60H:

With such ease, sew your first name or brand name using the alphabet built into the machine's program. This type of feature, often found on Juki sewing machines, is ideal for personalizing your creations precisely and easily.

Feel free to watch our video illustrating the steps.

As with the patterns, you need to press "A", but this time twice to display "Patterns II", then press "M" to memorize the order of your letters, which will appear at the bottom right of your screen.

Select the character numbers of your choice.

Summary of the steps for winding a bobbin with the JUKI HZL-80H / HZL-70H / HZL-60H:

Knowing how to wind a bobbin is essential for starting neat and durable sewing. Here are simple instructions for winding and positioning your thread correctly.

Step 1: Plug in the machine, then place the thread spool on the spool pin
Step 2: Pass the thread through the thread guide (steps 2 and 3), then through the central hole of the bobbin
Step 3: Position the bobbin on its winding spindle and move it to the right
Step 4: Hold down the foot pedal to start winding. Cut the thread in the middle, then finish winding
Step 5: Then pass the thread from the main spool through the automatic needle threader, and slide it into the presser foot slot
Step 6: Open the bobbin compartment cover, place your bobbin, and guide the thread through the designated path
Step 7: Press the button at the top twice to lower and raise the needle in order to retrieve the bobbin thread

What are the features of the JUKI HZL-80H / HZL-70H / HZL-60H:

• 197 built-in stitches, including decorative stitches
• One-step automatic buttonholes
• Free arm for tubular pieces
• Powerful LED lighting
• Simplified automatic threading
• Accessible presser foot pressure adjustment
• Integrated automatic thread cutter
• Intuitive electronic control screen

This machine is designed to provide comfort, precision, and excellent feeding smoothness, even on thick fabrics such as jeans or upholstery textiles. It is equally suitable for straight stitching, patchwork, and personalised creations.

Sewing patterns with the JUKI HZL-80H / HZL-70H / HZL-60H:

To sew decorative patterns, press the A button to display Patterns I mode, enter the pattern number you want, then press M to add it to the memory. Lower the presser foot and let the machine create the decorative stitching precisely. For an impeccable finish after sewing, using Juki ironing equipment helps set the stitches and enhance the finish with professional ironing.

For sewers wishing to experiment with parallel sewing, the JUKI HZL-80H can be used as a twin-needle sewing machine, provided that you install a twin needle and the appropriate presser foot.

Sewing letters with the JUKI HZL-80H / HZL-70H / HZL-60H:

Press A twice to access Patterns II, then press M to save your custom text. Select the letters one by one using the number keys. Press the foot pedal so the machine automatically sews your first name or the word of your choice with elegance.

How to adjust the presser foot pressure on the JUKI HZL-80H / HZL-70H / HZL-60H:

Presser foot pressure adjustment is essential for adapting to each fabric type. With a dedicated control, you can adjust the pressure depending on whether you are working with thin, thick or stretch fabric. This adjustment ensures smooth feeding and neat seams with no effort.

Is the JUKI HZL-80H / HZL-70H / HZL-60H suitable for beginners?

With its intuitive interface, automatic programs, clear manual and easy-to-install accessories, the HZL-80H is an ideal machine for beginners. If you are looking for your first sewing machine, this model will serve you well for a long time thanks to its reliable performance and versatile use. Many dressmakers recommend it as a robust machine.

What are the technical specifications of the HZL-80H / HZL-70H / HZL-60H?

• Sewing speed: 800 stitches/min
• Maximum stitch length: 4 mm
• Maximum stitch width: 7 mm
• Presser foot height: up to 9 mm (2 levels)
• Needle: 130/750H (HAx1)
• Weight: 5.8 kg
• Dimensions: 400 x 188 x 290 mm
• You can find all the technical specifications in the manual for easier use.

Which accessories are compatible with the JUKI HZL-80H / HZL-70H / HZL-60H?

• Standard presser foot and special buttonhole foot
• Dual-feed foot (optional)
• Needle set
• Bobbins
• Extension table
• Foot control
• Presser feet

What are the reviews of the JUKI HZL-80H / HZL-70H / HZL-60H?

Users particularly appreciate its ease of use, compact design, versatility and JUKI build quality. In reviews and customer tests, the sewing comfort, quiet operation and stitch precision are often highlighted. It is a perfect machine with no problems handling regular sewing and multiple layers without necessarily having to switch to an industrial machine.

You can find examples on our blog to easily create any type of project.
